SPECIFICATIONS



Brand Name: GTMEDIA

Item Type: Laptop LCD Screen

Compatible Brand: Universal Screen

Part Number: GTM2023

Application: Laptop

Resolution: FHD

Model Number: GTMedia mate X

feature 1: 17.3 inch FHD 1920*1080 IPS HD screen

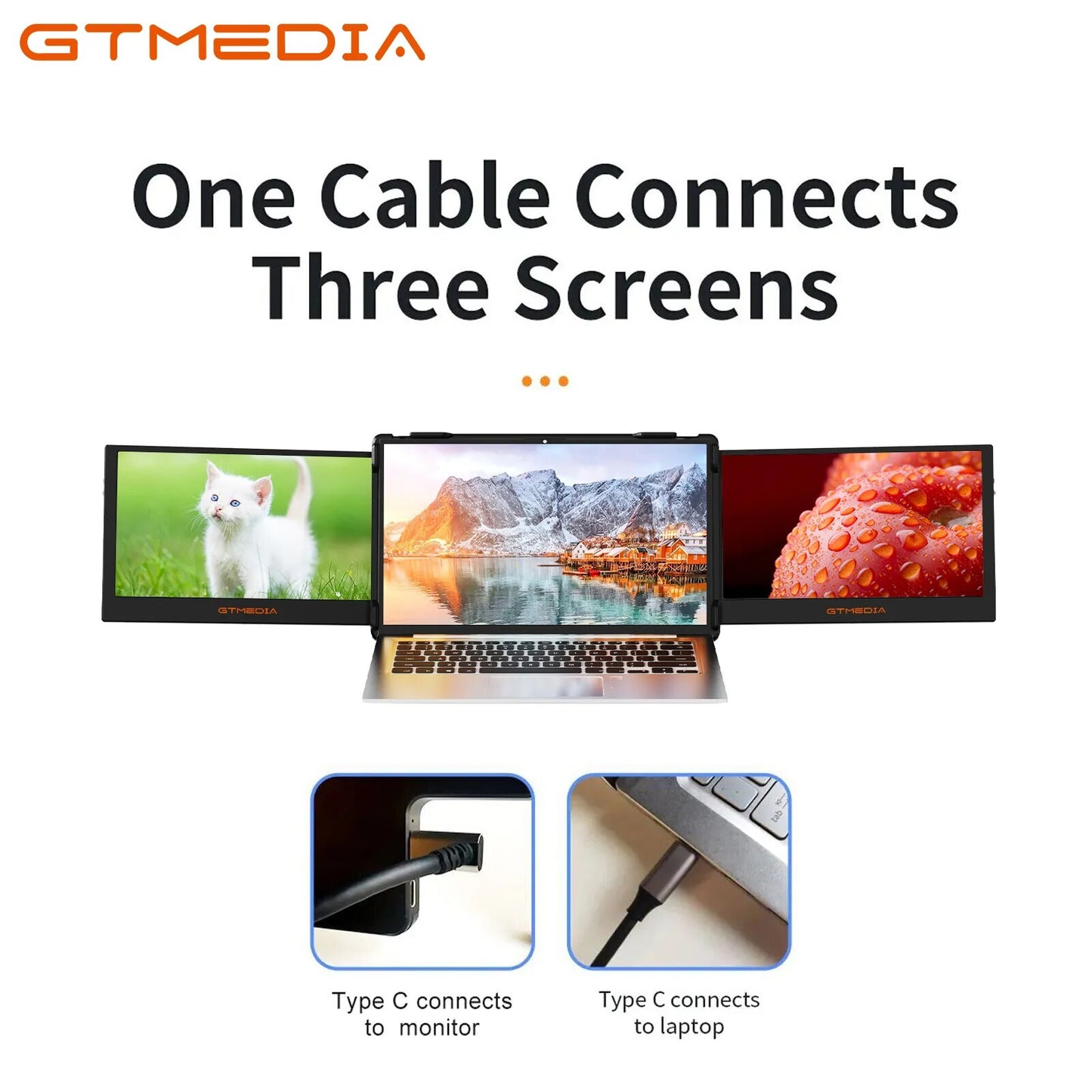

feature 2: Two Type-C full-featured ports, support DisplayPort Alt Mode

feature 3: USB 2.0 HOST

feature 4: Built-in dual speakers make the sound clearer and louder.

Support 1: multiple OSD languages

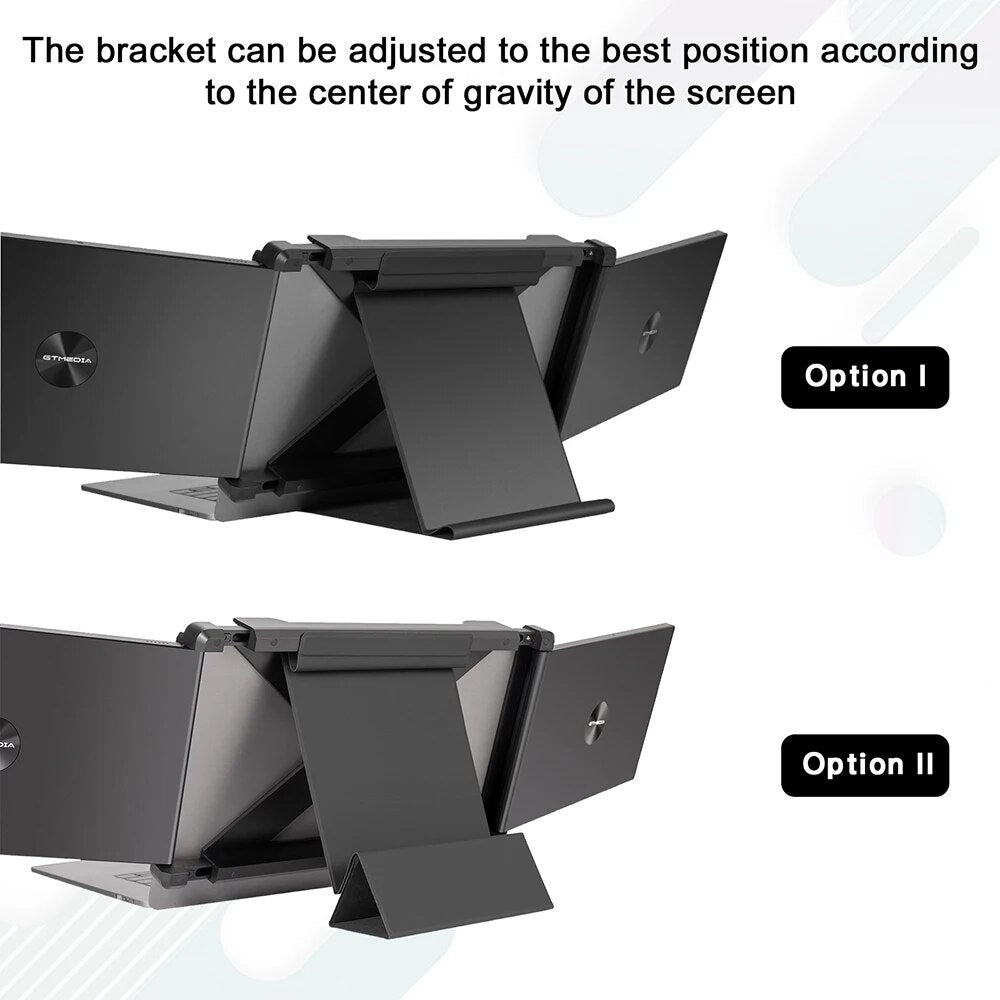

Support 2: dual-screen 195-degree rotation, applicable to a variety of usage scenarios

Support 3: 13.1-17.3 inches laptop

Support 4: most smartphones/computers/laptops/SLR camera/iPad/Xbox Series X(S)/Play Station5(4)/Nintendo, etc.

Product Features



1.17.3 inch FHD 1920*1080 IPS HD screen.

2.Two Type-C full-featured ports, support DisplayPort Alt Mode

3.HDMI input port, support audio and video synchronous output.

4.USB 2.0 HOST

5.Support multiple OSD languages

6.Built-in dual speakers make the sound clearer and louder.

7.Support dual-screen 195-degree rotation, applicable to a variety of usage scenarios.

8.Support 13.1-17.3 inches laptop

9.Support most smartphones/computers/laptops/SLR camera/iPad/Xbox Series X(S)/Play Station5(4)/Nintendo, etc

Warm Tips

1.Both Type-C ports can be used as video input or power input, however, they cannot be used for the same function at the same time.

(For example: one Type-C interface is used for charging, and the other Type-C interface is used for video input).

2.If the monitor needs to be connected to an external power source, please connect the power source first and then connect the video cable. This is important for high-quality and smooth video signal transmission.

3.When no external power is connected to the laptop and monitor, the power saving mode will be turned on automatically, and the screen will be darker. Users can adjust the brightness according to their needs, and insufficient power will cause the display to turn off or display inconsistently.

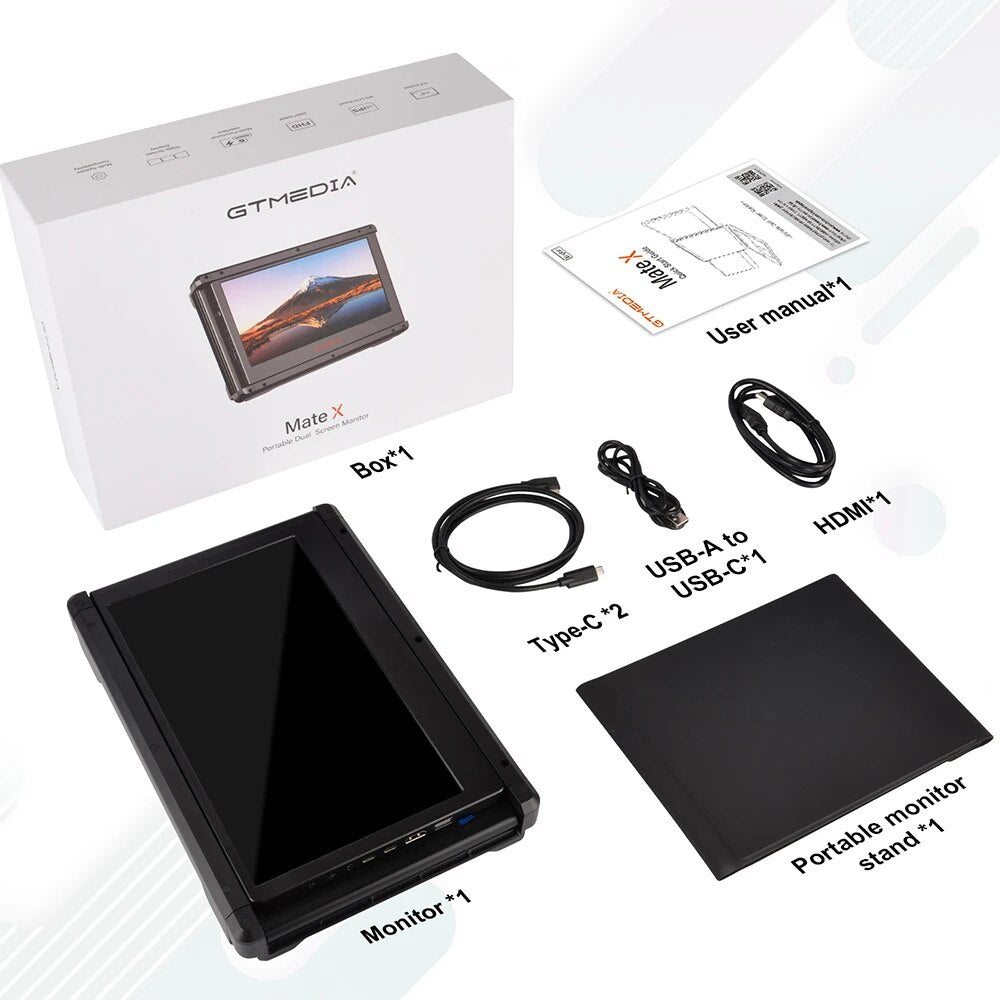

Package list

1x Mini HDMI to HDMI Cable,

1xType-C Cable,

1xUSB-C Cable,

1xPower adapter,

1xleather case,

1xManual

Specifications

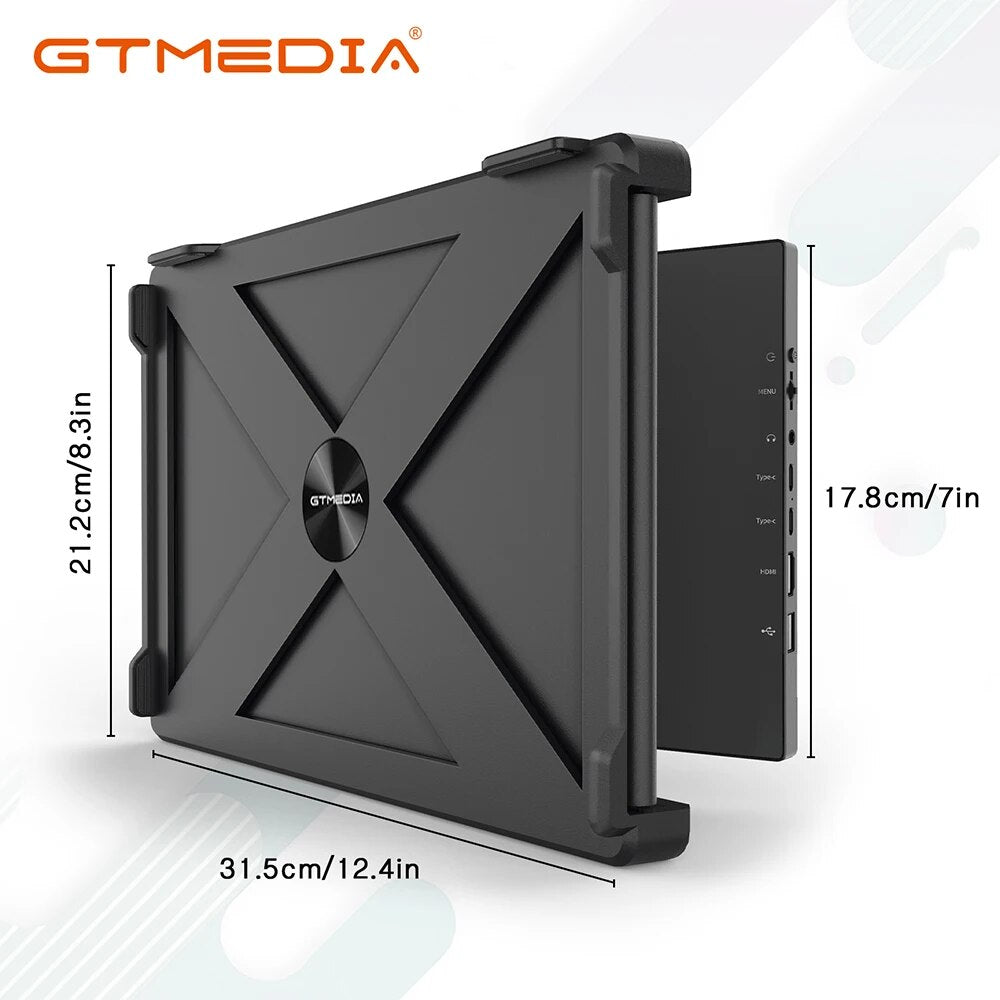

	Product specifications	Name	Portable Dual Screen Monitor	Size	315*215*40mm(After folding)
		Screen Size	11.6-inch	Pixels	16.7M
		Screen Ratio	16:9	Pixel Pitch	0.1335(H) x 0.1335 (V)
		weight	1.25KG	Resolution	1920(H)*1080(V)
		Packing Weight	2.25KG	Refresh Rate	60Hz
		Screen Type	IPS	Brightness	260cd/㎡
		Touch	NO	Contrast	1000：1
		Color Gamut	72% sRGB	Color	1.06B（8 bit)
		Viewing Angle	178°	Speaker	Speaker*2

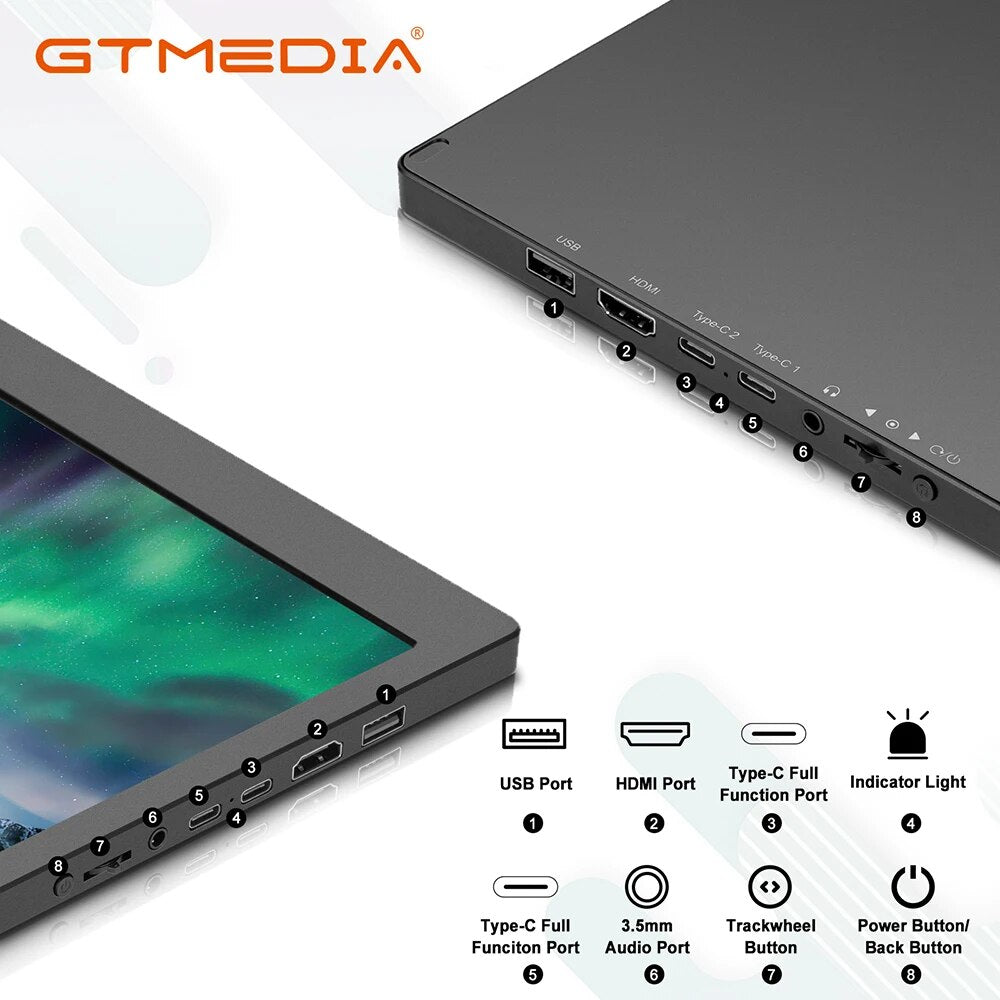

		HDR	HDR10	Input port	Type-C*2,HDMI,USB 2.0
		Response Time	8ms	Output Port	3.5mm Headphone hole
		Adapter	5V2.4A(optional) Non standard configuration
		Packing list	HDMI Cable,Type-C Cable*2,USB-A to USB-C Cable,Leather Case,Manual,Bracket
